1500 HP Drilling Rig 327 For Sale
Box-on-Box SCR Land Drilling Rig with Integrated Power, Mud, Well Control, and Support Systems
Rig 327 is a 1500 HP SCR land drilling rig built around a Jieneng JN-1500 drawworks, 150ft mast, Tesco ECI 900 top drive, CAT D-3512B engine package, HongHua F-1600 mud pumps, and a complete rig support inventory ready for serious field evaluation.
Turnkey 1500 HP SCR Land Rig Ready for Field Evaluation
Rig 327 is a 1500 HP SCR land drilling rig for sale, configured for operators and drilling contractors looking for a complete box-on-box land rig package with major power, mud, and drilling systems already identified.
The rig is built around a Jieneng JN-1500 drawworks, 150ft Jieneng-TFI mast, Tesco ECI 900 top drive, 37½-inch rotary table, and a box-on-box substructure measuring 36ft wide, 37ft long, and 30ft high.
Power is supported by three CAT D-3512B engines with Kato generators, while fluid circulation is handled by two HongHua F-1600 mud pumps, a 1,500 BBL mud pit system, charge pump skid, trip tank, and supporting mud equipment.
For buyers comparing used 1500 HP drilling rigs, Rig 327 offers a complete equipment profile that makes inspection, quoting, and deployment planning easier from the first conversation.
Jieneng drawworks, serial number JN06-JC5001.
Jieneng-TFI JJ450/45-K mast configuration.
36ft wide × 37ft long × 30ft high substructure.
Tesco / ECI top drive, unit number 668.
Lanzhou rotary table, serial number 106026.
Two 650 BBL water tanks included with the rig package.
Single diesel tank unit included in the support inventory.
Shale, sand, and suction mud pit configuration.
Key Systems Included With Rig 327
Rig 327 is presented as a complete 1500 HP SCR land drilling rig package, with major drilling, power, fluid, well control, and support systems identified for review.
- 2× HongHua HHF-1600 mud pumps
- Charge pump skid with priming and suction
- 1,500 BBL shale, sand, and suction mud pit system
- 140 BBL trip tank with 4×3 centrifugal pump
- 6× 10HP electric pit stirrers
- 3× CAT D-3512B engines
- 3× Kato generators rated at 1,204 KW each
- Omron SCR house with 4 SCR / 3 generator configuration
- 3× SCR generator skids
- 6× GE 752 series traction motors
- Choke manifold unit
- 4-1/16 inch × 10M pressure control configuration
- 5-way studded block from Horn Equipment
- 4× Cameron FC gate valves rated to 10,000 PSI
- Koomey 7-station accumulator
- 150ft Jieneng-TFI JJ450/45-K mast
- Box-on-box substructure measuring 36ft × 37ft × 30ft
- Crown R-328 with 6× 60-inch sheaves
- YC-450 500T travelling block
- National P-500 swivel
Need the complete rig package reviewed?
BD Oil and Gas can provide equipment details, availability information, inspection coordination, and next-step discussions for buyers evaluating Rig 327.

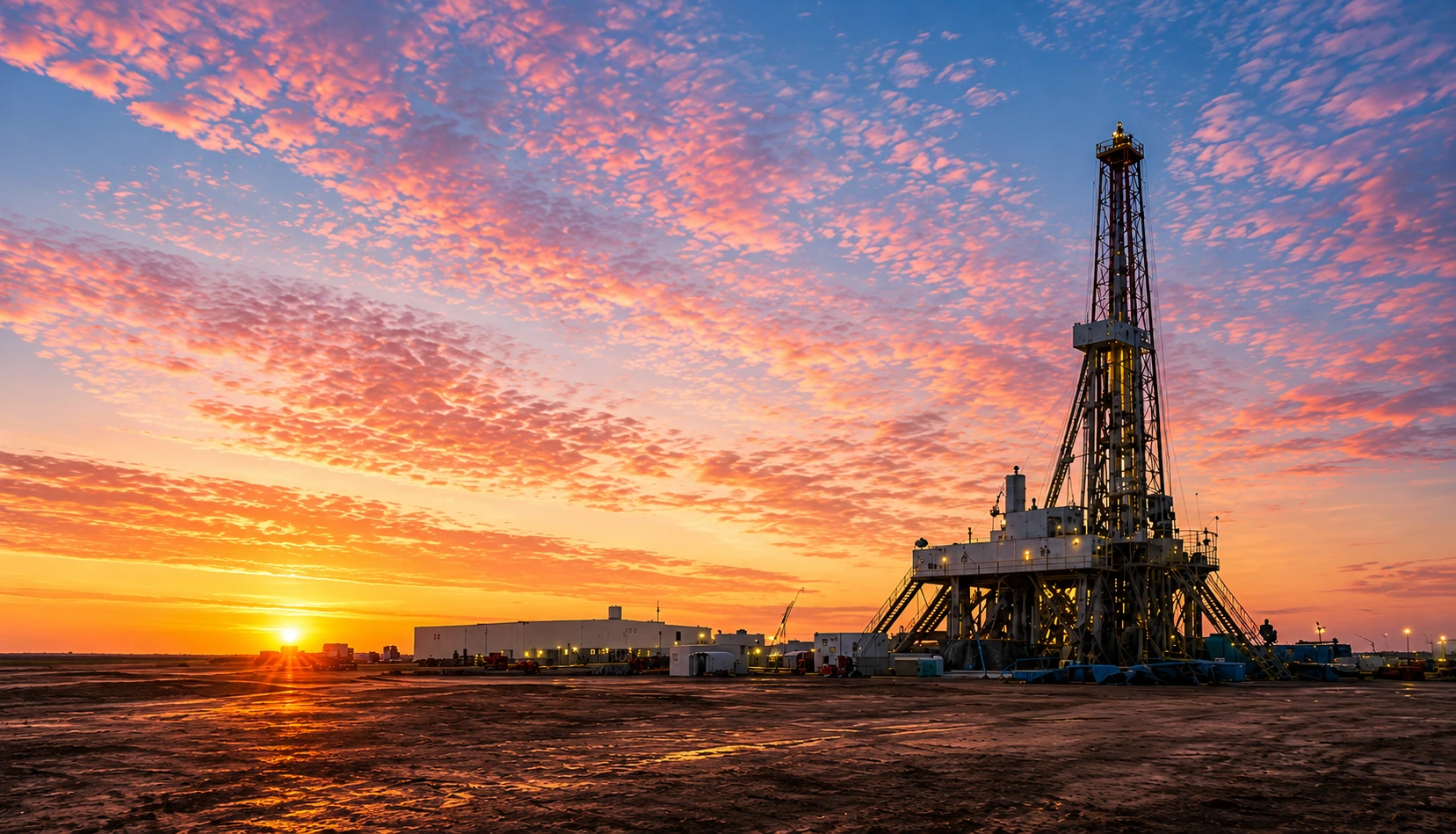

Comparing Rig 327 With Rig 301?
BD Oil and Gas also offers Rig 301 for buyers comparing available land drilling rig packages. Rig 301 uses a single substructure setup and mechanical-drive configuration, while Rig 327 is a 1500 HP SCR land rig with a box-on-box substructure and integrated power, mud, well control, and support systems.
Rig 327 Full Inventory
Review the itemized Rig 327 equipment list, including drilling structure, power generation, SCR systems, mud pumps, well control equipment, tanks, houses, air compressors, and support systems.
| Item # | Qty | Description | Make | Model | Serial # | Position |
|---|---|---|---|---|---|---|
| 15-124 | 1 | Drawworks | Jieneng | JN-1500 | JN06-JC5001 | Drawworks |
| 33-329 | 1 | Mast 150ft, drawing JN111.02.00 | Qindao Jieneng | JJ450/45-K | N/A | Mast |
| 49-327 | 1 | Substructure box-on-box, 36ft wide × 37ft long × 30ft high | Jieneng | Box-on-Box | N/A | Substructure |
| 54-35 | 1 | Top Drive | Tesco / ECI | ECI 900 | 668 | Top Drive |
| 94-11 | 1 | Top Drive Power Unit, Canadian Global SmartDrive Electric | Canadian Global | 500 ECI | N/A | TD Power Unit |
| 44-215 | 1 | Rotary Table 37½ inch | Lanzhou | 37½ inch | 106026 | Rotary Table |
| 10-328 | 1 | Crown, 6× 60-inch sheaves, 1½-inch line, 12-inch shaft | Jieneng | TC450-16 | N/A | Crown |
| 5-138 | 1 | Block YC-450 500T, 1½-inch drilling line | Lanzhou | YC-450 | 106020 | Block |
| 50-69 | 1 | Swivel | National | P-500 | 3624N | Swivel |
| 22-850 | 1 | Engine CAT D-3512B | CAT | D-3512B | 4AW01146 | Engine #1 |
| 22-716 | 1 | Engine CAT D-3512B | CAT | D-3512B | 4AW01028 | Engine #2 |
| 22-849 | 1 | Engine CAT D-3512B | CAT | D-3512B | 4AW01144 | Engine #3 |
| 24-456 | 1 | Generator 1,204 KW | Kato | AA27673004 | 17696-05 | Generator #1 |
| 24-155 | 1 | Generator 1,204 KW | Kato | A270980001 | 14179-02 | Generator #2 |
| 24-457 | 1 | Generator 1,204 KW | Kato | AA27673004 | 17696-01 | Generator #3 |
| 45-327 | 1 | SCR House, 4 SCR / 3 generator configuration | Omron | 4 SCR 3 Gen | 111773.01 | SCR House |
| 88-516 | 1 | SCR Gen Skid, CAT D3512 and Kato generator | Unit | N/A | N/A | Gen Skid #1 |
| 88-517 | 1 | SCR Gen Skid, CAT D3512, Kato generator, cold start | Unit | N/A | N/A | Gen Skid #2 |
| 88-518 | 1 | SCR Gen Skid, CAT D3512 and Kato generator | Unit | N/A | N/A | Gen Skid #3 |
| 38-326 | 1 | Mud Pump HHF-1600 | Hong Hua | F-1600 | 06-188 | Mud Pump #1 |
| 38-327 | 1 | Mud Pump HHF-1600 | Hong Hua | F-1600 | 06-180 | Mud Pump #2 |
| 39-327 | 1 | Charge Pump Skid, priming, suction and pit plumbing | Unit | N/A | N/A | Charge Pump Skid |
| 37-327 | 1 | Mud Pits, 1,500 BBL total, shale 50ft, sand 40ft, suction 40ft | Unit | N/A | N/A | Mud Pits |
| 37T-327 | 1 | Trip Tank 140 BBL with 4×3 centrifugal pump | Unit | 140 BBL | N/A | Trip Tank |
| 47-328 | 1 | Shale Shaker FLC-503LH | Derrick | FLC-503LH | MAH012759 | Shale Shaker |
| 47-330 | 1 | Shale Shaker FLC-503RH | Derrick | FLC-503RH | MAH012411 | Shale Shaker |
| 09-327 | 1 | Choke Manifold Unit | N/A | N/A | N/A | Choke Manifold |
| 1-01 | 1 | Accumulator, Koomey 7 station | Koomey | 7 Station | 14020-01 | Accumulator |
| 51-327A/B | 2 | Water Tank, 650 BBL each, 1,300 BBL total | Unit | 650 BBL | N/A | Water Tank |
| 82-327 | 1 | Diesel Tank, 18,800 gallons | Unit | 18,800 Gal | N/A | Diesel Tank |
| 52-1018 | 1 | Iron Roughneck Varco ST80C | Varco | ST80C | ST80CF10Y751 | Iron Roughneck |
| 52-327 | 1 | Tongs | N/A | N/A | N/A | Tongs |
| 41-177 | 1 | Pipe Spinner OWI 35C7 | OWI | 35C7 | PS0290 | Pipe Spinner |
| 2-469 | 1 | Air Compressor Sullivan Palatek 50-DG | Sullivan Palatek | 50-DG | 06J040A | Compressor #1 |
| 2-274 | 1 | Air Compressor Sullivan Palatek 50-DG | Sullivan Palatek | 50-DG | 05B084 | Compressor #2 |
| 2-1470 | 1 | Air Compressor Sullivan Palatek D185 Cold Start | Sullivan Palatek | D185 | 34679 | Cold Start |
| 14-327 | 1 | Doghouse, driller side | Unit | N/A | N/A | Doghouse |
| 36-327 | 1 | Mud House, 30ft × 10ft × 9ft | Unit | N/A | N/A | Mud House |
| 80-327 | 1 | Change House, 37ft × 8ft 5in × 8ft 6in | Unit | N/A | N/A | Change House |
| 92-327 | 1 | Skid System, Wool Slay 400 Ton | Wool Slay | N/A | N/A | Skidding System |
| HPU-327 | 1 | HPU Power Unit, Cathead / Brake, 50HP Baldor, 150 Gal reservoir | Motion | N/A | N/A | HPU Cathead |
Need the complete rig package reviewed?
This table highlights the full Rig 327 inventory from the available equipment list. Contact BD Oil and Gas to discuss availability, inspection coordination, pricing, and next-step purchasing information.
Site Layout — Rig 327
Rig 327 is presented with a complete site configuration showing the relationship between the mast, substructure, SCR house, generator skids, mud pumps, mud pits, tanks, well control equipment, and support units.
Shale · Sand · Suction
Mast & Substructure
Primary drilling structure with mast, substructure, V-door, dog house, and pipe rack positioning.
Power Zone
SCR house, three generator skids, engine package, and electrical support equipment grouped for rig power distribution.
Mud System
Mud pump #1, mud pump #2, mud pits, charge pump skid, trip tank, mud house, and related circulation equipment.
Tanks & Storage
Water tanks, diesel tank, junk basket, parts house, and support storage areas positioned around the working rig site.
Well Control
Accumulator, choke manifold, and pressure control support equipment included in the site configuration.
Support Equipment
Air compressors, change house, ODS dog house, catwalk, and other support units shown as part of the Rig 327 layout.
Need help reviewing the complete layout?
Contact BD Oil and Gas to discuss Rig 327 inspection, availability, transportation planning, and next-step requirements for the complete rig package or individual components.
